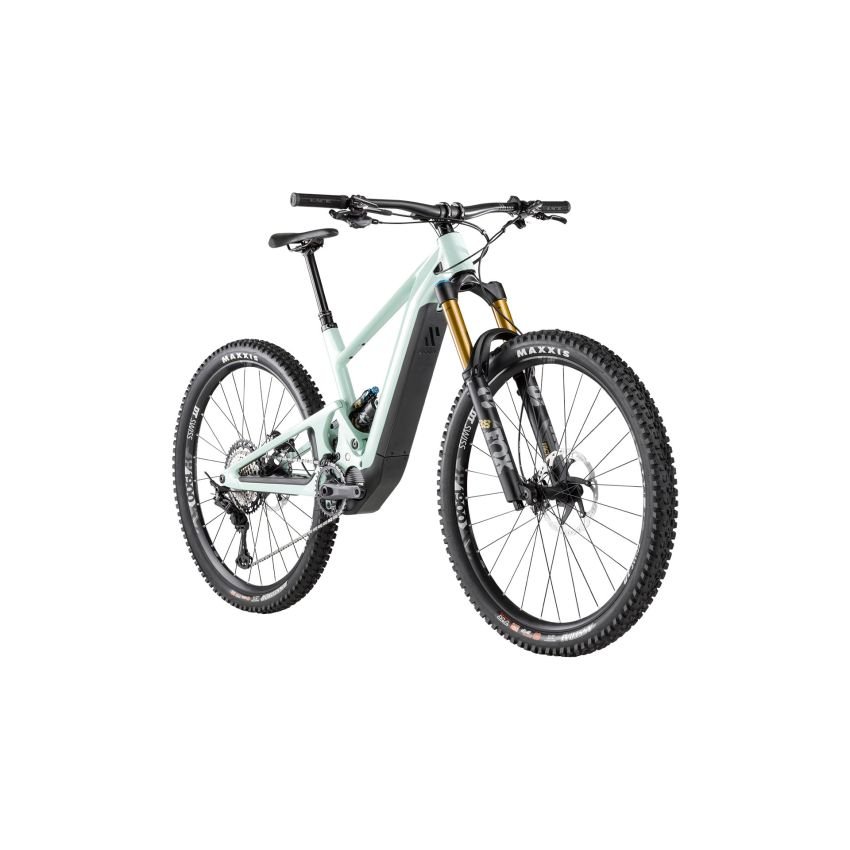

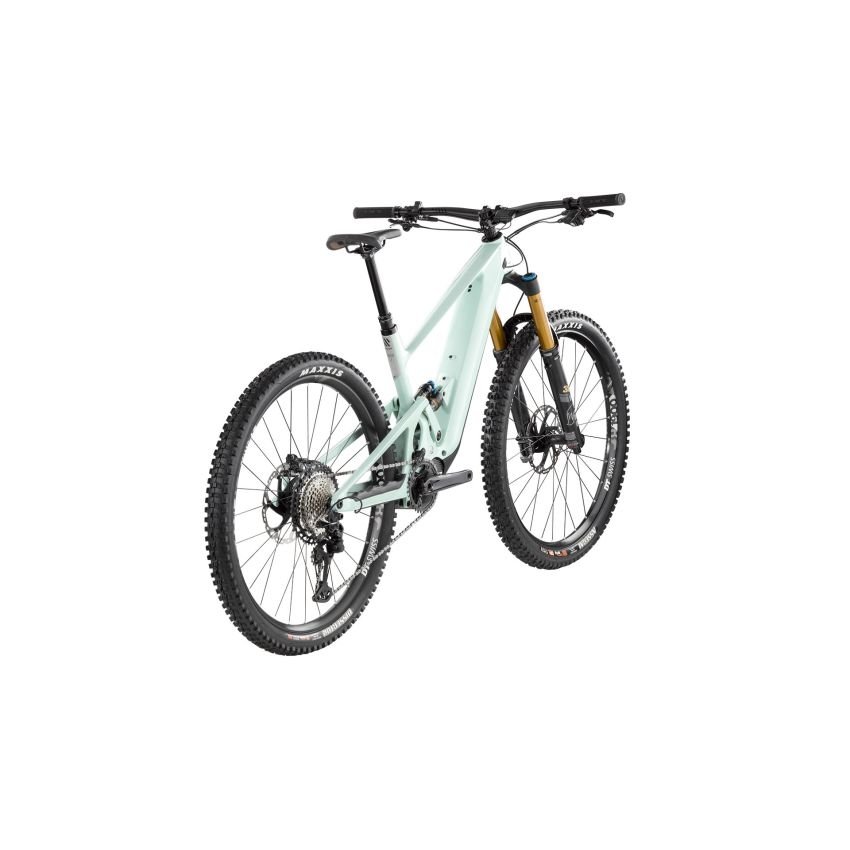

SCOR Z 4060 STC XT

Produktdetails

Rahmengröße: M

AMP SPECS

DRIVE UNIT:
SHIMANO Steps EP8 (DU-EP800)

BATTERY PACK:
Darfon 36V. 720Wh. SHIMANO Steps service included

DRIVE UNIT CONTROL:
SHIMANO Steps EP8 Left Switch Unit (SW-EM800-L)

DISPLAY:
SHIMANO Steps EP8 Wireless Cycle Computer (SC-EM800)

CHARGER:
Darfon Smart Plus 100-240V. 4A. EU
FRAMESET
FRAME:
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center Linkage | 140mm rear wheel travel | Boost 148 | SRAM Universal Derailleur Hanger
SUSPENSION
FRONT SUSPENSION:
Fox Float 38 Factory Series E-Bike | 150mm travel | Grip2 damper | Low & high speed compression adjust | Low & high speed rebound adjust | 44mm rake | E-MTB rated

REAR SUSPENSION:
Fox Float X Factory Series | Compression adjust | Rebound adjust | 2 position adjust | Bearing mount
COCKPIT
HANDLEBAR:
SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5deg up sweep - 7.5deg back sweep

STEM:
Burgtec Enduro MK3 | 3D forged and fully CNC machined | 31.6mm bar bore | 35mm lenght | 0deg angle

SEATPOST:
Bikeyoke Divine | S 125mm. M/L 160mm. XL 185mm travel | Triggy Alpha lever

SADDLE:
Fizik Terra Alpaca
DRIVETRAIN
GEARS:
1 x 12

CRANKSET:
SHIMANO Deore XT (FC-M8150) | 165mm length | 34T chainring (SM-CRE80-12-B)

CASSETTE:
SHIMANO Deore XT (CS-M8100-12) | 10-51T

CHAIN:
SHIMANO Deore XT (CN-M8100)

FRONT DERAILLEUR:
SHIMANO Deore XT (RD-M8100) | 12 speed

REAR DERAILLEUR:
SHIMANO Deore XT (SL-M8100-R)

SHIFTERS:
SHIMANO Deore XT (SL-M8100-R)
BRAKES
BRAKE LEVERS / CALIPERS:
SHIMANO Deore XT | SHIMANO BR-M8120 calipers | SHIMANO BL-M8100 levers

ROTORS:
SHIMANO SM-RT86 rotors. 203mm
WHEELS
RIMS - RIM DEPTH (ROAD) / INNER WIDTH (MTB):
DT Swiss H 1900 Spline | 30mm internal width | Tubeless ready

HUBS (F/R):
DT Swiss 370 | Ratchet LN freehub | Straightpull spoke interface | Boost Spacing

TIRES:
Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R) | Compound: 3C Maxx Grip (F) / 3C Maxx Terra (R) | Casing: EXO+ (F) / Double Down (R) | Tubeless ready
ADDITIONAL INFORMATION
TIRE CLEARANCE:
Width: 64mm Diameter: 750mm

ASTM CLASSIFICATION:
Level 4

WEIGHT LIMIT:
130kg
